Aluminium System Profiles
Aluminium profiles to suite standard façade substructures and to be used in conjunction with the EVT range of brackets.

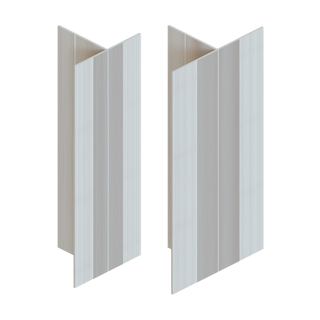

T-Profiles
Standard profile with 80mm, 110mm and 120mm face for vertical and horizontal applications, typically used in panel joint locations.

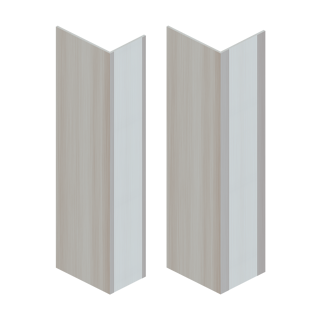

L-Profiles
Standard profile with 40mm and 50mm face for vertical and horizontal applications, typically used as an intermediate support for Façade systems.
Floorspan Profiles
Floorspan profiles with 40mm and 110mm face typically used in floor spanning applications and for heavy weight facade materials.

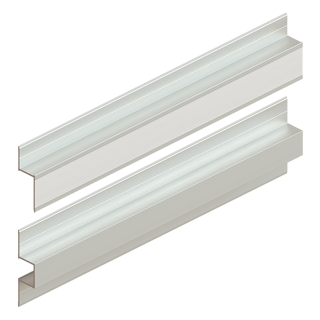

Zed and Hat Profiles
Zed and Hat profiles generally used for face fix systems with a shallow cladding zone of less than 50mm.

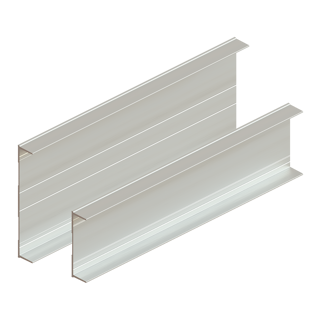

Structural C-Profiles
Structural C Channel designed for single and double brackets, where the SFS stud is out of alignment with the cladding line.

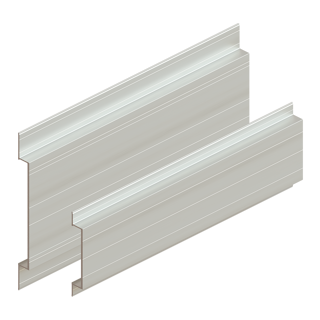

Structural Top Hats
Structural top hats designed for single and double brackets, where the SFS stud is out of alignment with the cladding line.
