Briklok Brick slip
The new briklok™ system from RJ Facades, introduces a strength of backing support wall, new to ventilated facades.

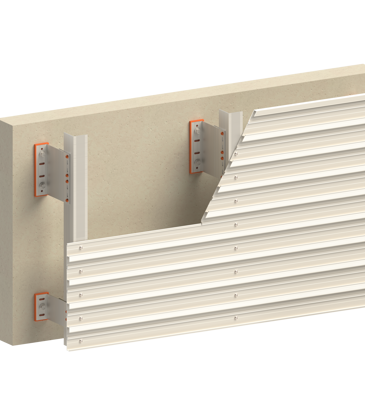

The new patent pending briklok™ system is a unique interlocking design that creates a solid aluminium inner cavity, supporting simple, tested cavity barrier installation. The briklok design creates the possibilities of the off-site fabrication of columns, and corner returns creating improved, reduced site time of the installation of complicated architectural detailing.
Suitable as a lightweight and cost effective option compared to the traditional brick build-up.
briklok uses primarily a natural clay brick range to create the look and feel of a heritage timeless brick building.

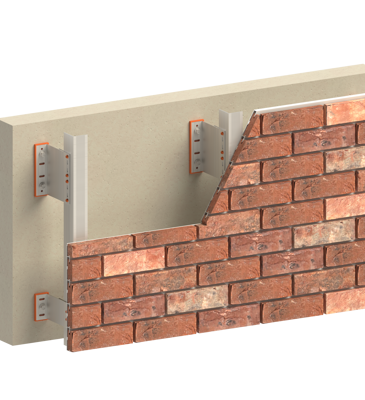

briklok brickslips are made from a real clay brick, providing the timeless aesthetic appeal of brick in highrise applications and offers architects and developers almost limitless options when it comes to design and finish. The Ibstock bricks have been tested with the Briklok in CWCT sequence B, with UKAS accreditation by UL, NHBC approved method of certification. Briklok system works with all real clay bricks that meet the systems specification.

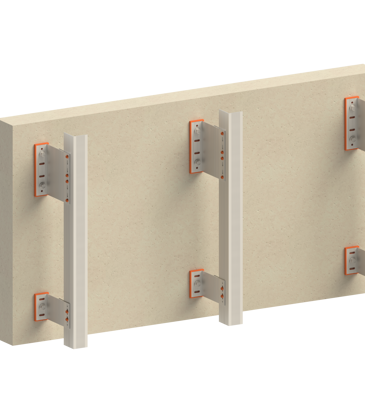

The system primarily uses EVTII helping hand brackets & 60x50x2mm L profile with a combination of vertical T & L profiles, vertical centres to be calculated by RJ facades technical department.
- Downloads
-
- Approvals
-
UL Winmark Approval (UKAS Product Certification)
The UL Certification covers the full range of brackets and accessory components. The aluminium and stainless EVT brackets and components are manufactured and fabricated in Europe and the UK at UL audited manufacturing sites.
The Approval Covers
A detailed overview of the certified products
Technical specification of the products
An initial assessment of the certified company's factory production control systems.
Design considerations
A review of the products documentation to help demonstrate compliance with the applicable requirements of the UL Scheme.
An assessment of the certified products contribution to any key requirement of the building regulations.
An overview of the certified companies product installation requirements and procedures.
An overview of all supporting test documentation used for the product evaluation.
Ongoing surveillance of the certified company's factory production control system and procedures.
The conditions under which this product certification is valid.
- Technical Characteristics
-
Typical bracket configuration uses the Fixed Point bracket at the highest position on the vertical rail to support the façade vertical dead loads. The Sliding Point bracket is used typically on all other positions on the vertical rail to absorb the project wind loading
The system benefits from using a standard helping hand system, which is interchangeable with other RJ Facades helping hand systems based on the project requirements.
RJ Facades offer one of the UK's largest range of Helping Hand brackets which have been designed to help achieve the the required U-Value while helping to support the facade system going back to the backing wall.
Project thermal calculations to confirm insulation thickness available on a project by project basis.
RJ Facades design issued by the our technical department can be covered by Product and design insurance if required.
System components available in AutoCAD and PDF downloads.
RJ Facades offer a standard, available ex stock UK, range that covers most design requirements.
All rails available to specific RAL colours in Qualicoat on an order to order basis.
